Optical PC High Bay Light Components SMD5050 60 Degree Area Lighting Parts

Name: Optical PC High Bay Light Components SMD5050 60 Degree Area Lighting Parts
Brand: Sunshineopto
Price: 1 USD

Buy cheap Optical PC High Bay Light Components SMD5050 60 Degree Area Lighting Parts product

Brand Name : Sunshineopto

Model Number : SUN-LD236X70-5050-60

Certification : SGS,ROHS

Place of Origin : Shenzhen,China

MOQ : 1

Payment Terms : T/T,PAYPAL,Western Union,Money Gram

Supply Ability : 5000pcs/months

Delivery Time : 3-4 working days

Packaging Details : Cartons

Product name : 50W 60W 75W 100W High Bay light components 60 Degree Area lighting parts for 5050 SMD LED

Model No. : SUN-LD236X70-5050-60

LENS size : 236X70mm

Material : Optical grade PC

LED CHIP : 5050 SMD LED

Tranmittance : 91%

Application : Street light, High bay light, Tunnel light, area light, square light and so on

PCB size : 218x44x1.5mm

Circuit for PCB board : 2 series 14 parallel. 48v output

Contact Now

50W 60W 75W 100W High Bay light components 60 Degree Area lighting parts for 5050 SMD LED

Quick Detail:

Model No:SUN-LD236X70-5050-60
Material: PC
Beam Angle : 60 degree
Lens size:236X70MM
PCB size:218x44x1.5mm
Circuit: 2 series 14 parallel
Match LED: 5050 SMD LED
Small footprint, high light output

Features :

This SKD 28 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 50w, 60w, 70w, 80w, 90w, 100w and so on .
It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
Industry-leading thermal management utilizing technology
Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
The LED retrofit kits contain no any mercury or lead.
Does not produce UV rays that harm people’s eyes.
Directional light means no light pollution, dark sky compliance.
Optic lenses are available for projects that need smaller beam angles, like 80X150/ 90/60/90X120/130 degree/ TYPE3 and TYPE4.

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

Optical PC High Bay Light Components SMD5050 60 Degree Area Lighting Parts

Optical PC High Bay Light Components SMD5050 60 Degree Area Lighting Parts
Specifications:

1, Product Name	50W 60W 75W 100W High Bay light components 60 Degree Area lighting parts for 5050 SMD LED
2, Model No	SUN-SL236X70-5050-60
3, Main parts	28 Array lens , silicon gasket+PCB+ 5050SMD LED+heat sink
4, Lens Material	PC
5, Lens size	236X70MM
6, Transmittance	91%
7,LEDS	5050 SMD,24V, 160mA
8, Sample	3-4 work day
9, Delivery	5-7 work days for 10000 sets
10, Angle	60 Degree
11, Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
12, Main market	Europe, South America,North America, Asia

Shipping and delivery time:

DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB\|EXW\|CIF\|CFR
Sample availability	YES
Delivery time	3-4 working days

LENS Dimensions :

Optical PC High Bay Light Components SMD5050 60 Degree Area Lighting Parts

Dimensions for silicon gasket:

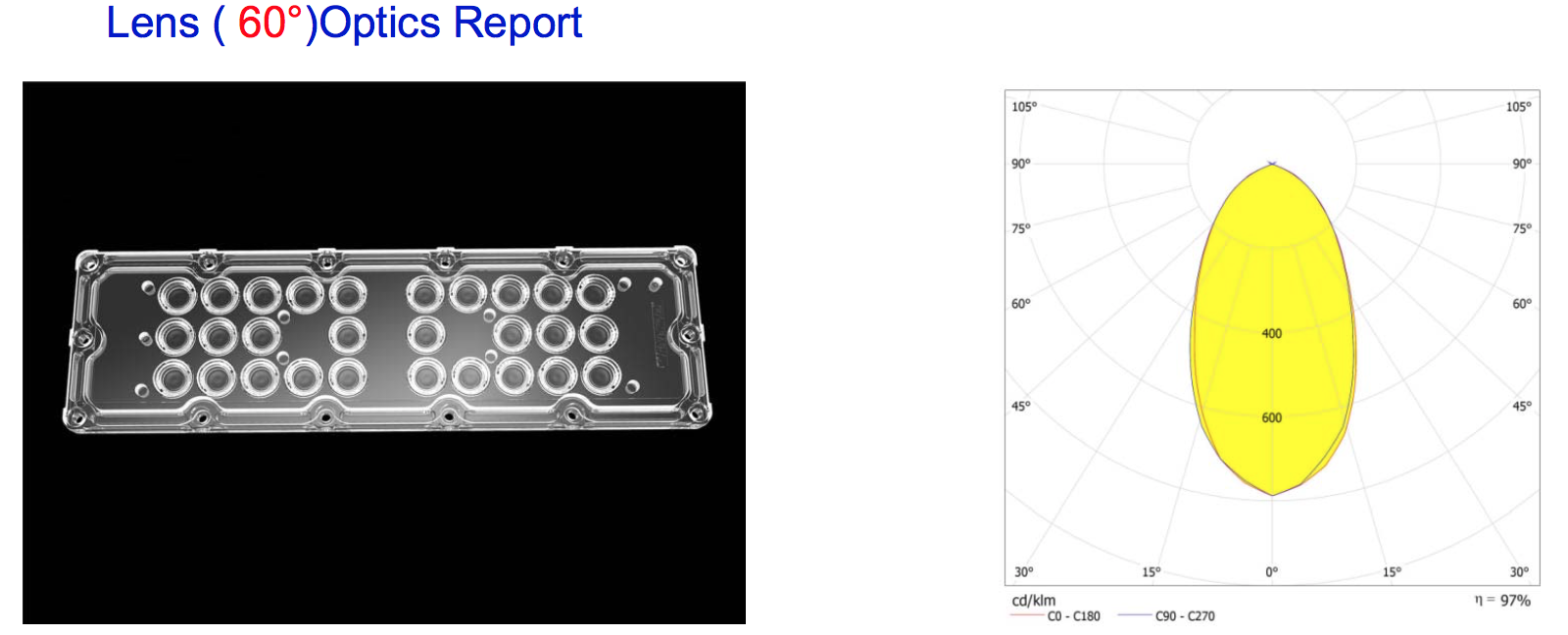

Beam pattern:

Optical PC High Bay Light Components SMD5050 60 Degree Area Lighting Parts

PCB board size:
