50W 64 LED Street Light Module 3030 SMD 130 Degree Wide Beam Angle For Area Lighting

Name: 50W 64 LED Street Light Module 3030 SMD 130 Degree Wide Beam Angle For Area Lighting
Brand: Sunshineopto
Price: 1 USD

Buy cheap 50W 64 LED Street Light Module 3030 SMD 130 Degree Wide Beam Angle For Area Lighting product

Brand Name : Sunshineopto

Model Number : SUN-SL64W-3030-130

Certification : SGS,ROHS

Place of Origin : Shenzhen,China

MOQ : 1

Payment Terms : T/T,PAYPAL,Western Union,Money Gram

Supply Ability : 5000pcs/months

Delivery Time : 3-4 working days

Packaging Details : Cartons

Product name : 130 degree wide beam angle 50W 64 LED 3030SMD Module for Area lighting

Model No. : SUN-SL64W-3030-130

Beam angle : 130 Degree

LENS size : 236x70x6.9mm

Material : Optical grade PC

LED CHIP : 3030 SMD LED , 150mA, 6V, 140-150LM/W

Tranmittance : 91%

Application : High bay light/Street light

PCB size : 219.1x53.54x1.5mm

Circuit for PCB board : 8 series 8 parallel

Contact Now

130 degree wide beam angle 50W 64 LED 3030SMD Module for Area lighting

Quick Detail:

Model No:SUN-SL64W-3030-130
Material: PC
Beam Angle : 130 Degree
Lens size:236x70mm
PCB size:219.1x53.54x1.5mm
Circuit: 8 series 8 parallel
Match LED: 5050 SMD LED
Small footprint, high light output

Features :

This SKD 64 LED Array lens with PCB Module is best choice to design power lamps like 40w 50w and so on .
It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
Industry-leading thermal management utilizing technology
Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
The LED retrofit kits contain no any mercury or lead.
Does not produce UV rays that harm people’s eyes.
Directional light means no light pollution, dark sky compliance.
Optic lenses are available for projects that need smaller beam angles, like 80X150/ 90/60/90X120 degree and Vertrial 80x150 degree.

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

Specifications:

1, Product Name	130 degree wide beam angle 50W 64 LED 3030SMD Module for Area lighting
2, Model No	SUN-SL64W-3030-130
3, Main parts	64 Array lens , silicon gasket+PCB+ 3030 SMD LED+heat sink
4, Lens Material	PC
5, Lens size	236x70MM
6, Transmittance	91%
7,LEDS	Orginal package 3030SMD LED, 140-150LM/W, 150mA,6v
8, Sample	3-4 work day
9, Delivery	5-7 work days for 10000 sets
10, Angle	30/60/90/90x120/130/90x110/80x150 Degree
11, Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
12, Main market	Europe, South America,North America, Asia

Shipping and delivery time:

DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB\|EXW\|CIF\|CFR
Sample availability	YES
Delivery time	3-4 working days

LENS Dimensions :

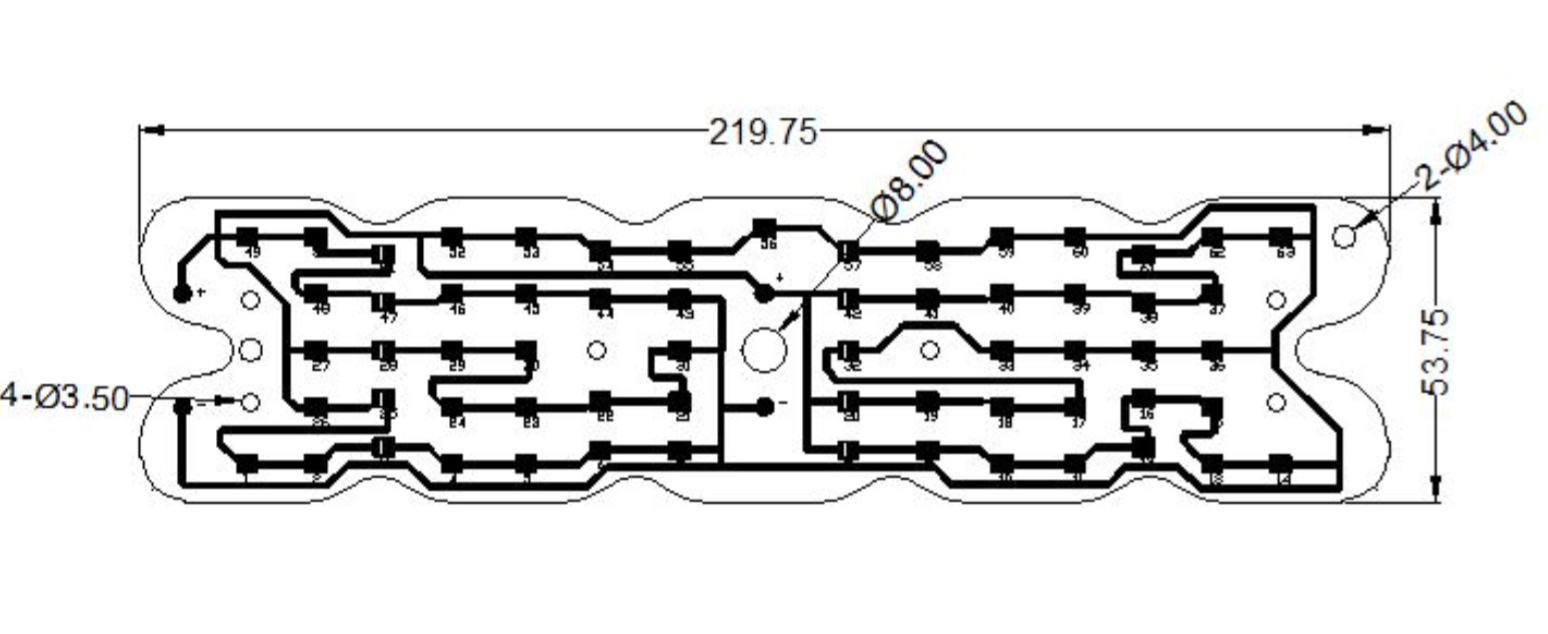

PCB board size:

Beam pattern:

130 Degree:

50W 64 LED Street Light Module 3030 SMD 130 Degree Wide Beam Angle For Area Lighting

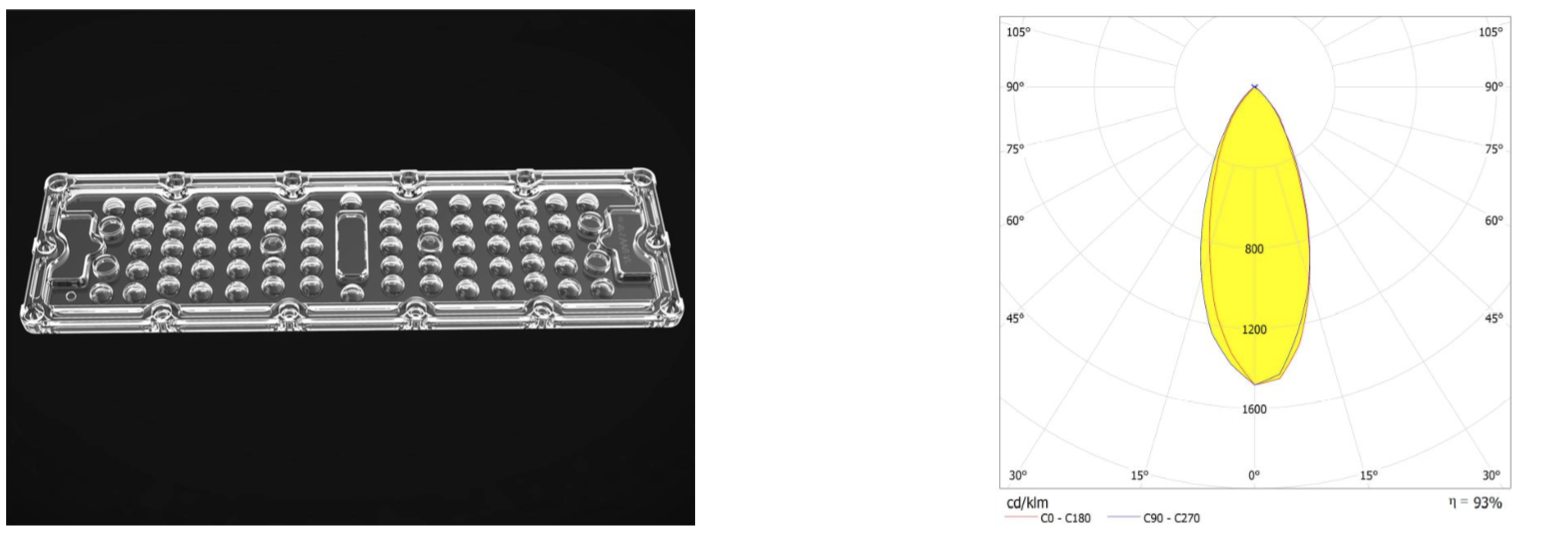

30 Degree :
50W 64 LED Street Light Module 3030 SMD 130 Degree Wide Beam Angle For Area Lighting

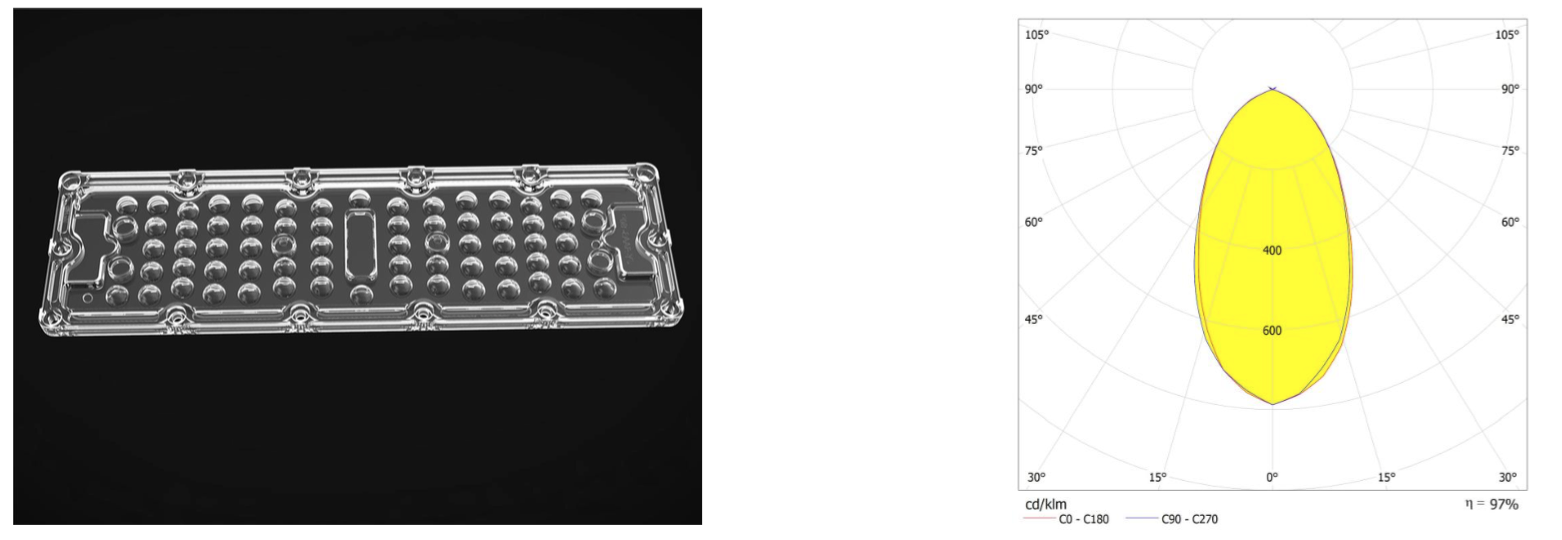

60 Degree:

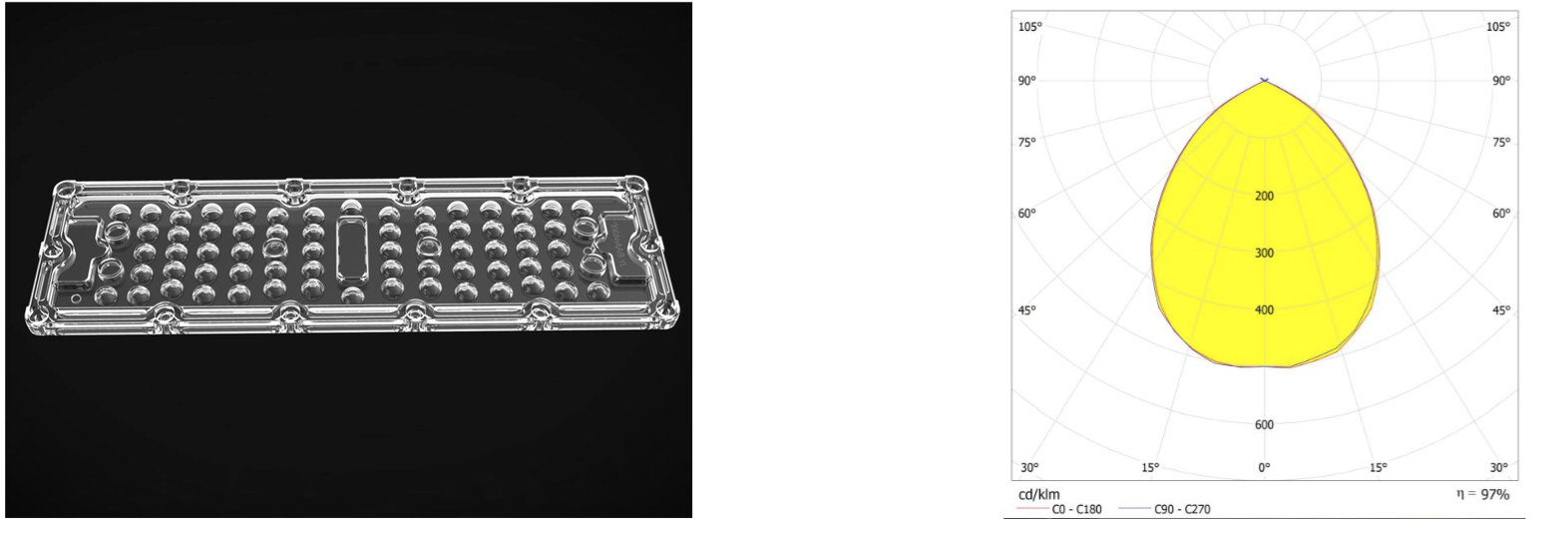

90 Degree:

50W 64 LED Street Light Module 3030 SMD 130 Degree Wide Beam Angle For Area Lighting

90x150 Degree:

50W 64 LED Street Light Module 3030 SMD 130 Degree Wide Beam Angle For Area Lighting

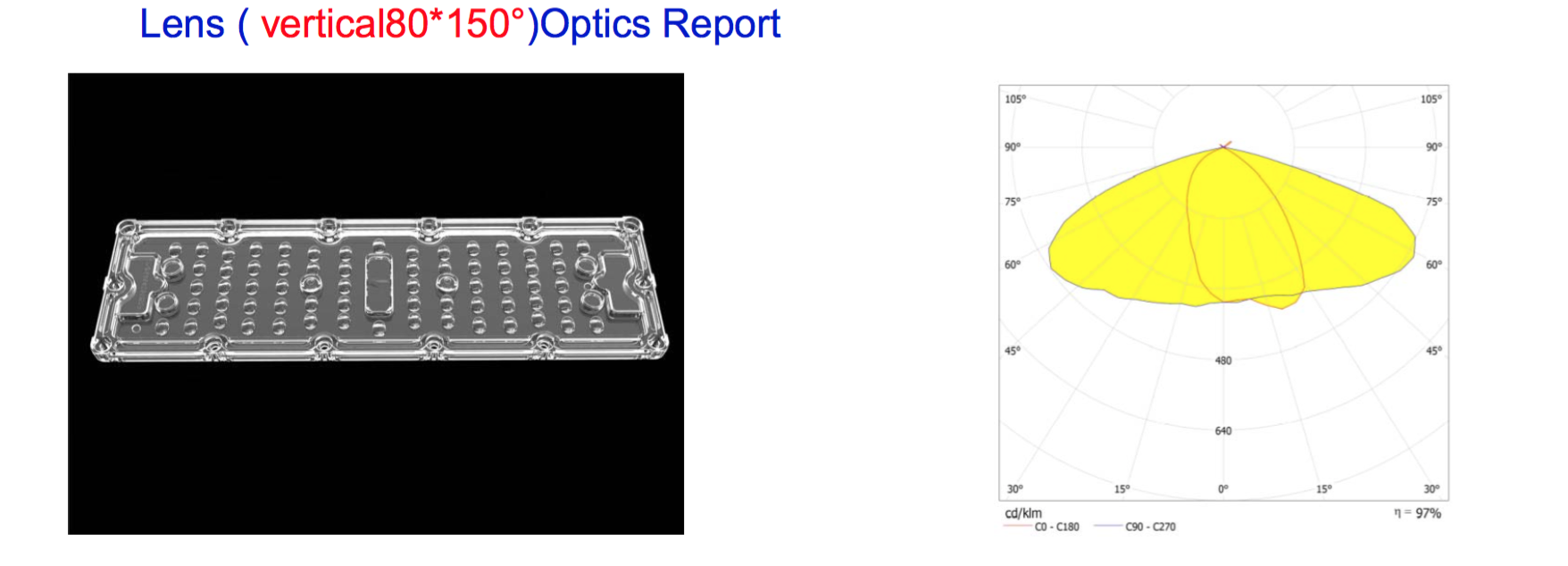

80x150 Degree:

50W 64 LED Street Light Module 3030 SMD 130 Degree Wide Beam Angle For Area Lighting
