100Watt 144 Points SMD 3030 Led Street Light Module With Heat Sink

Name: 100Watt 144 Points SMD 3030 Led Street Light Module With Heat Sink
Brand: SunshineOpto
Price: 1 USD

Buy cheap 100Watt 144 Points SMD 3030 Led Street Light Module With Heat Sink product

Brand Name : SunshineOpto

Model Number : SUN-L236x140-3030-70x140

Certification : ROHS

Place of Origin : Shenzhen,China

MOQ : 1 piece

Price : need to negotiation

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 5000 pcs per month

Delivery Time : 5-8 working days

Packaging Details : cartons

Model No : SUN-L236x140-144-3030

Lens size : 236x140mm

Lens angle : 70x140 degree

Wick : 144 leds

Material : PC

Transmittance : 92%

Match Led : smd 3030

PCB Size : 221x125x1.5 mm

PCB Circuit : 8 series 18 parallel

Contact Now

100W 144points 3030 led Street Light Module With Heat Sink

100Watt 144 Points SMD 3030 Led Street Light Module With Heat Sink

Model No.:	SUN-LD236x140-144-3030
Angle:	70x140 degree
Lens Size:	236x140 mm
PCB Size:	221x125x1.5 mm
Lens Material:	Optical grade PC
Circuit:	8 series 18 parallel DC 48V
LED:	144pcs 3030 Leds

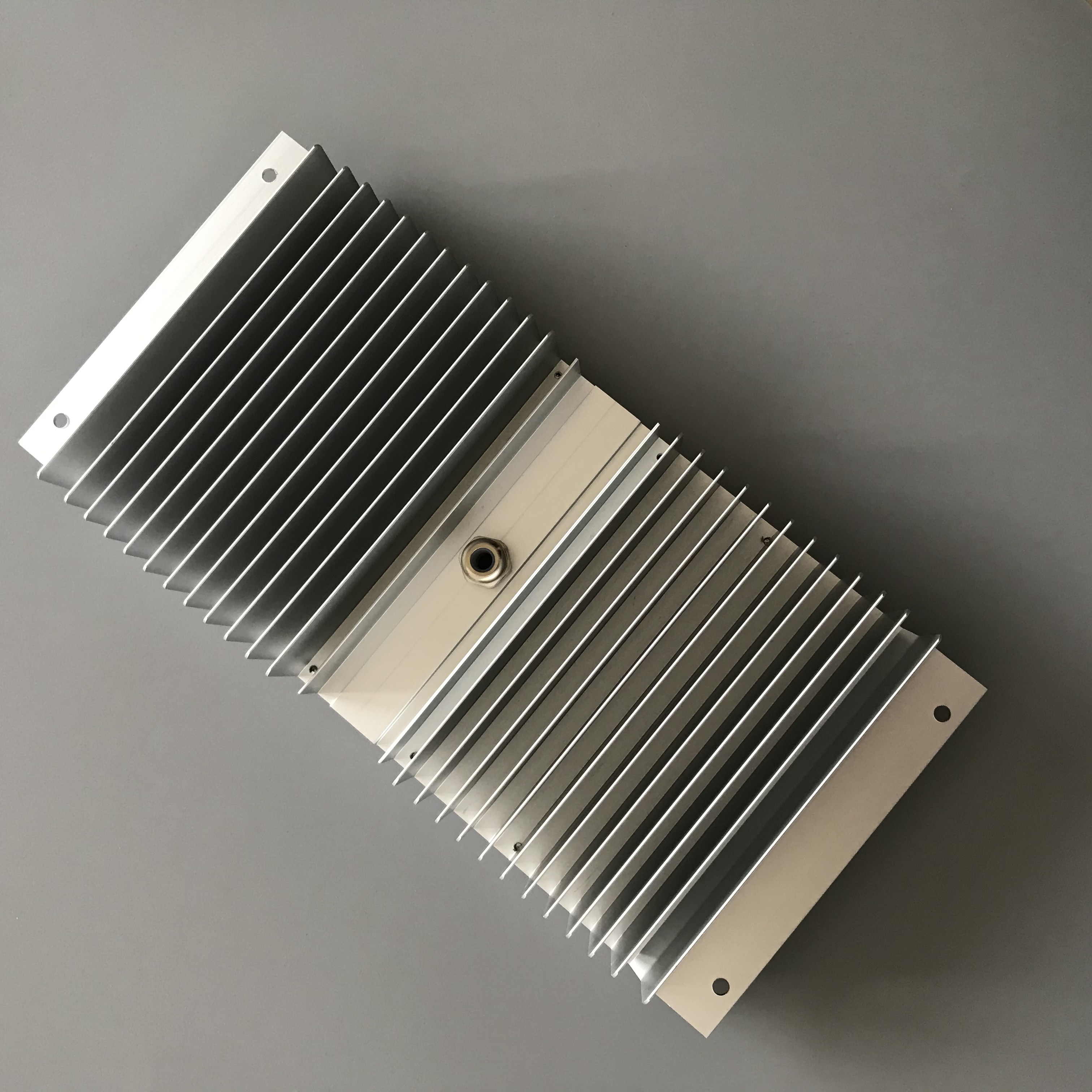

Kits:	led lens with gasket, led boards, heat sink, screws
Luminous Efficiency:	140lm-160lm/watt , 100watt

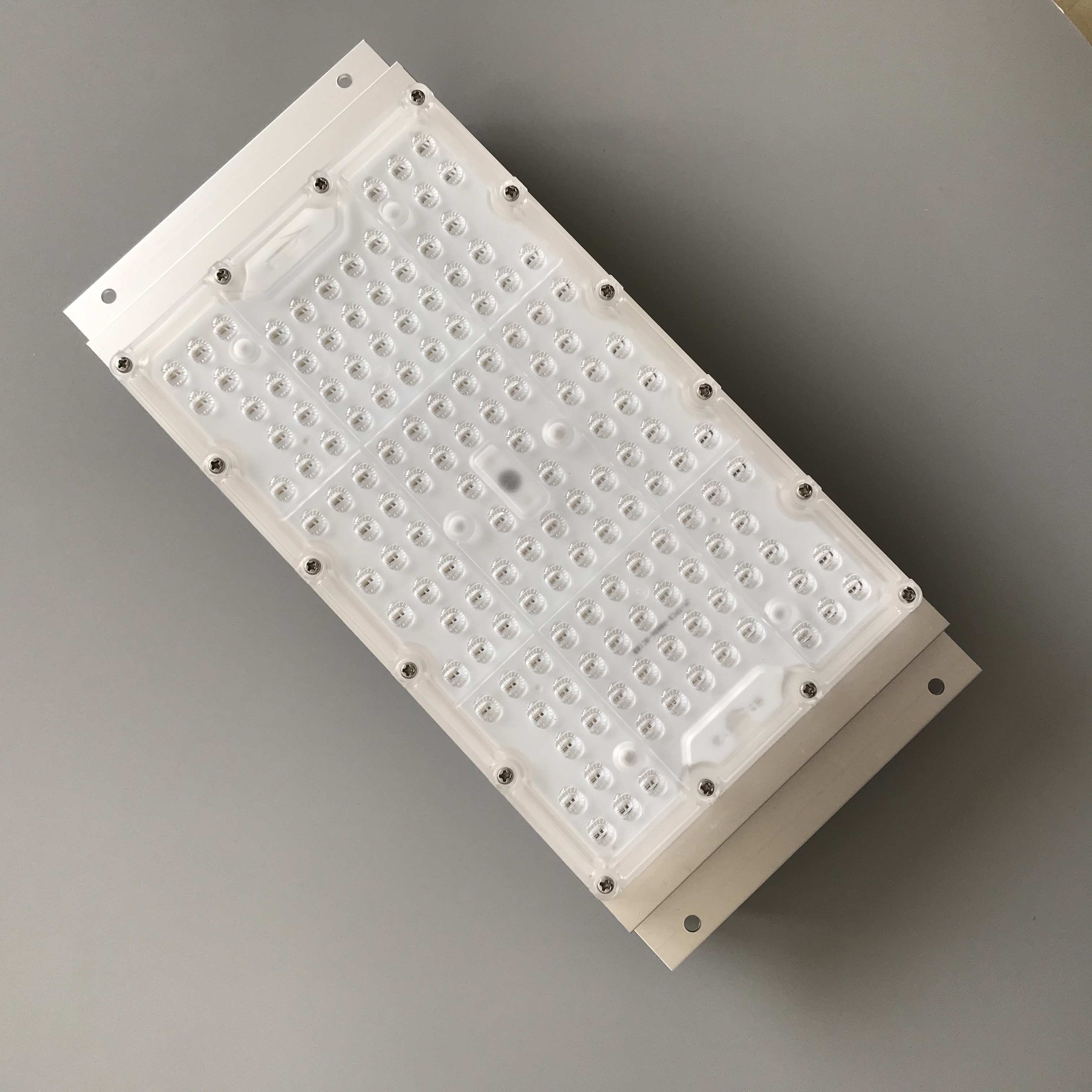

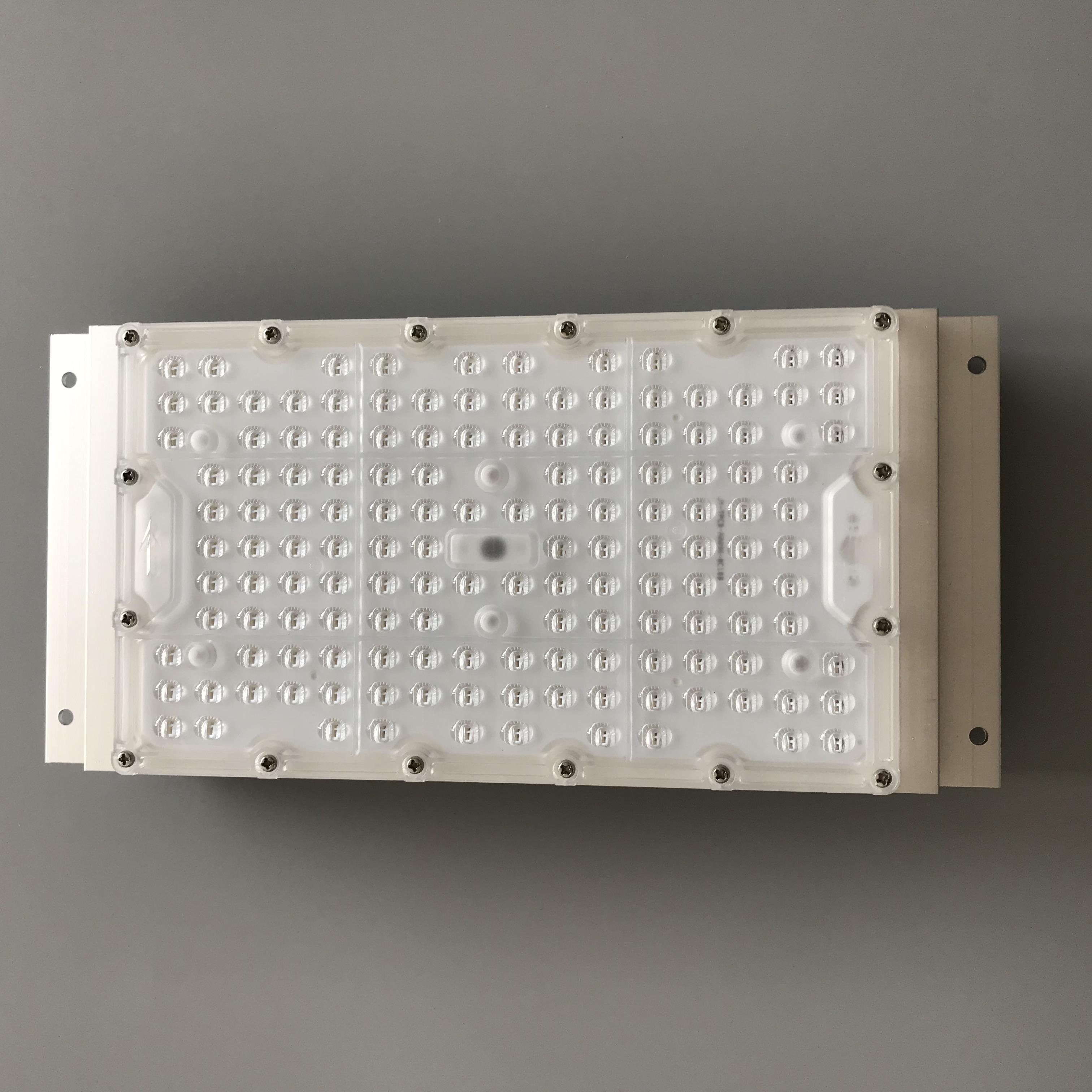

product picture:

Feature:

1, This module, we use 3030 2D square Les leds, the whole module luminous can reach 140-160lm/watt.
2, One module can support 100watt power, whole module size 300x140x40mm,
3, It's more cheaper than XTE/XPG, 5050 Led module, but also high luminous.
4, we provide 2 years warranty.

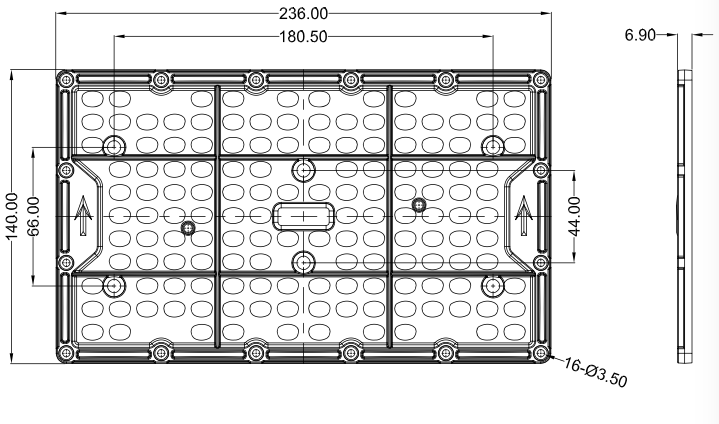

Lens drawing:

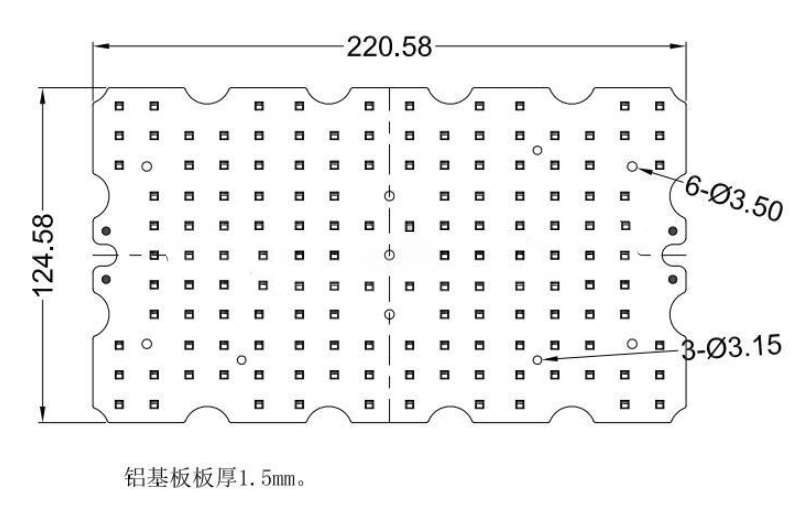

PCB Drawing:

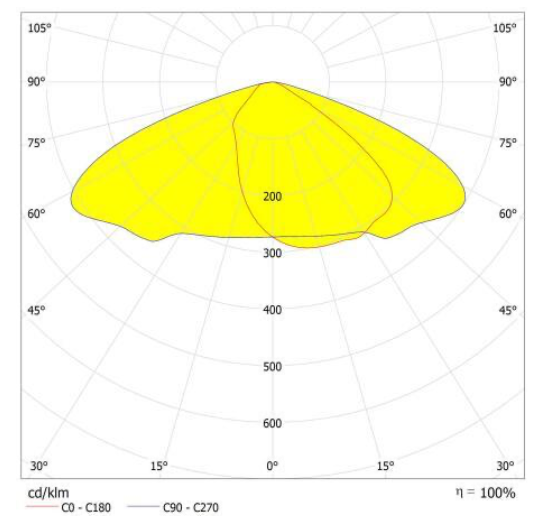

Lens angle: 70x140 degree

Application: Led street light, led high way lamp,
