Name: 60 Degree 36 LED Array Lens With PCB 3030 SMD LED PCB Board
Brand: Sunshineopto
Price: 1 USD

Brand Name : Sunshineopto

Model Number : SUN-LD253X120-36-60

Certification : SGS,ROHS

Place of Origin : Shenzhen,China

MOQ : 1

Payment Terms : T/T,PAYPAL,Western Union,Money Gram

Supply Ability : 5000pcs/months

Delivery Time : 3-4 working days

Packaging Details : Cartons

Product name : 36 LED Array projection Lamp lens

Model No. : SUN-LD253X120-36-60

Beam angle : 60 degree

LENS size : 253X120X10.6MM

LED CHIP : 3030 SMD LED,6V 150mA

Application : High bay light/Street light/Square lighting/Projection lam and so on

PCB size : 223X93X1.5MM

Circuit for PCB board : 8 series 18 parallel

Contact Now

60 degree 90 degree 150 degree 36 LED Array Projection Lamp Lens With 144 PCB Board

Features :

This SKD 36 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 100W,110W and so on .
It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
Industry-leading thermal management utilizing technology
Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
The LED retrofit kits contain no any mercury or lead.
Does not produce UV rays that harm people’s eyes.
Directional light means no light pollution, dark sky compliance.
Optic lenses are available for projects that need smaller beam angles, like 60 degree, 90 degree, 150 degree, 117x52 degree, 100x1400 degree, 181x51 degree.

Specifications:

1, Product Name	60 degree 90 degree 150 degree 36 LED Array projection Lamp lens with 144 PCB board
2, Model No	SUN-LD253X120-36-60
3, Main parts	36Array lens , silicon gasket+PCB+ 3030SMD LED
4, Lens Material	PC
5, Lens size	253X120MM
6, Transmittance	91%
7,LEDS	3030 SMD,6V, 150mA
8, Sample	3-4 work day
9, Delivery	5-7 work days for 10000 sets
10, Angle	117X52 degree
11, Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
12, Main market	Europe, South America,North America, Asia

Shipping and delivery time:

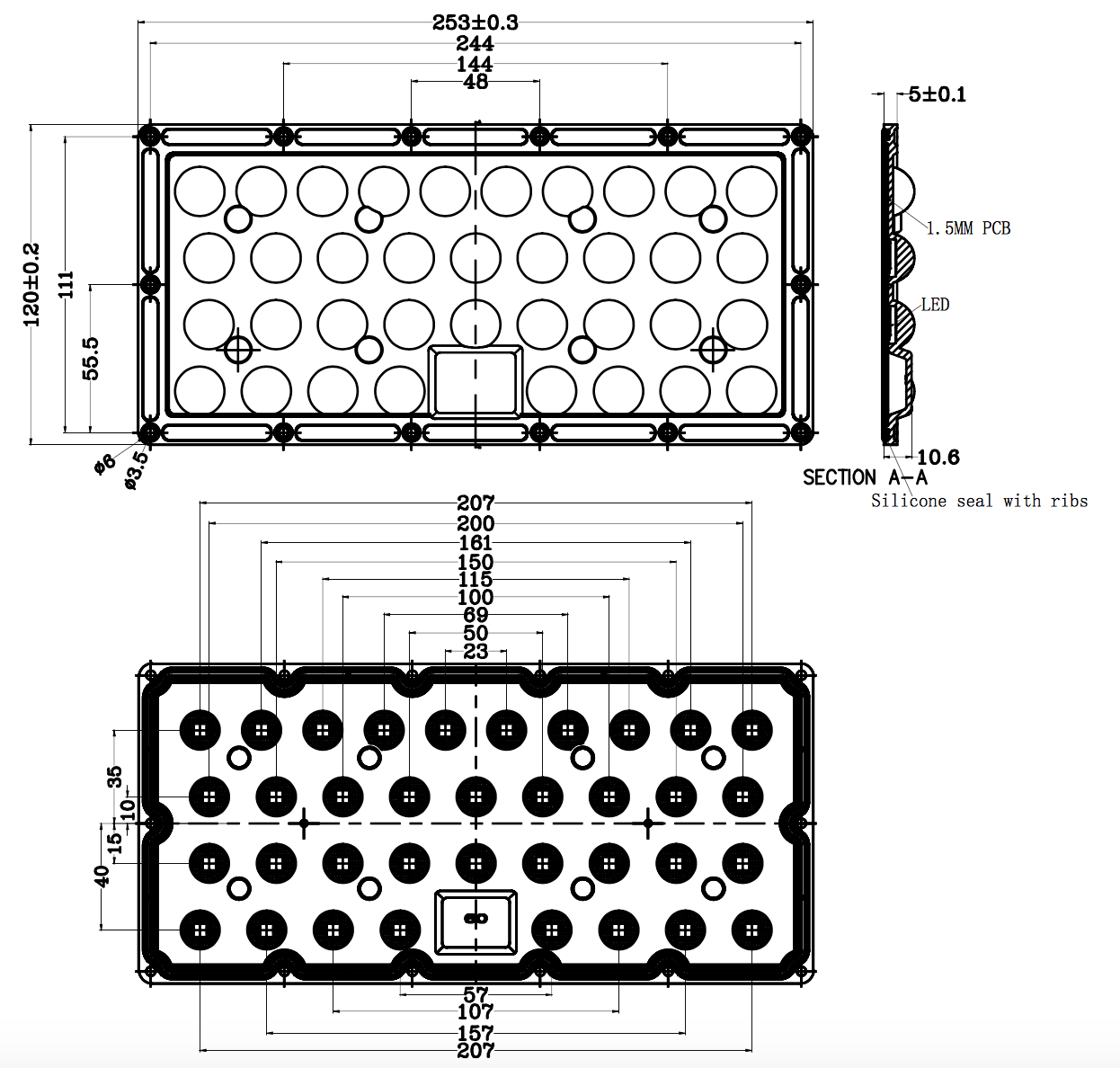

LENS Dimensions :

60 Degree 36 LED Array Lens With PCB 3030 SMD LED PCB Board

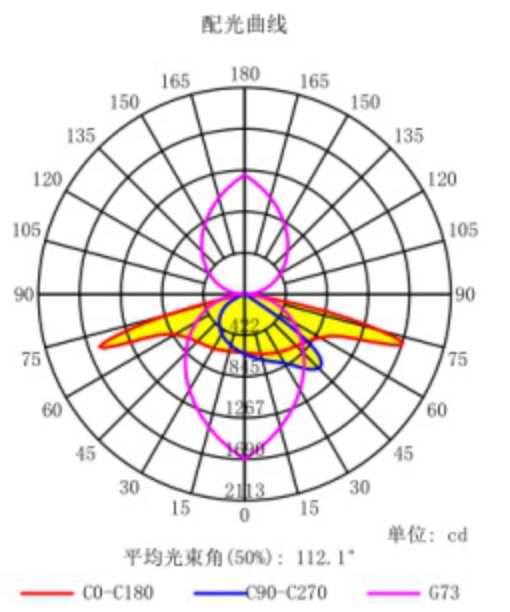

Beam pattern:

Rerated of lens:

Application:

Product Tags:

60 Degree LED Array Lens With PCB
