192PCS SMD3030 1W 6V LED Lens Module TYPE2-M 48 Points Lens 150LM/W

Product Categories
Sunshine Opto-electronics Enterprise Co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

192PCS SMD3030 1W 6V LED Lens Module TYPE2-M 48 Points Lens 150LM/W

  • 1
  • 2
  • 3

Brand Name : Sunshineopto

Model Number : SUN-LD240X160-48X4-T2-M

Certification : SGS,ROHS

Place of Origin : Shenzhen,China

MOQ : 1

Payment Terms : T/T,PAYPAL,Western Union,Money Gram

Supply Ability : 5000pcs/months

Delivery Time : 3-4 working days

Packaging Details : Cartons

Product name : 100W 150W 192PCS 3030 SMD 1W 6V LED module TYPE2-M 48 points lens

Model No. : SUN-LD240X160-48X4-T2-M

Beam angle : TYPE2-M

LENS size : 240X160mm

Material : Optical grade PC

LED CHIP : 3030 SMD LED , 150mA, 6V, 140-150LM/W

Tranmittance : 91%

Application : High bay light/Street light/Area light/Project light/Square light and so on

PCB size : 216x136x1.5mm

Circuit for PCB board : 8 series 24parallel, 48V OUTPUT

Contact Now


100W 150W 192PCS 3030 SMD 1W 6V LED module TYPE2-M 48 points lens




Features :

  1. This SKD 192 pieces 3030smd 1w LED Array lens with PCB Module is best choice to design power lamps like 100-150w  and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 80X150/ 90/60/90X120 degree and Vertrial 80x150 degree and so on.



Specifications:


1, Product Name

100W 150W 192PCS 3030 SMD 1W 6V LED module TYPE2-M 48 points lens

2, Model No

SUN-LD240X160-48X4-T2-M

3, Main parts

48 Array lens , silicon gasket+PCB+ 3030 SMD LED

4, Lens Material

PC

5, Lens size

240X160MM

6, Transmittance

91%

7,LEDS

Orginal package 3030SMD LED, 140-150LM/W, 150mA,6v

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

Typ2-M

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days



Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
192PCS SMD3030 1W 6V LED Lens Module TYPE2-M 48 Points Lens 150LM/W
192PCS SMD3030 1W 6V LED Lens Module TYPE2-M 48 Points Lens 150LM/W

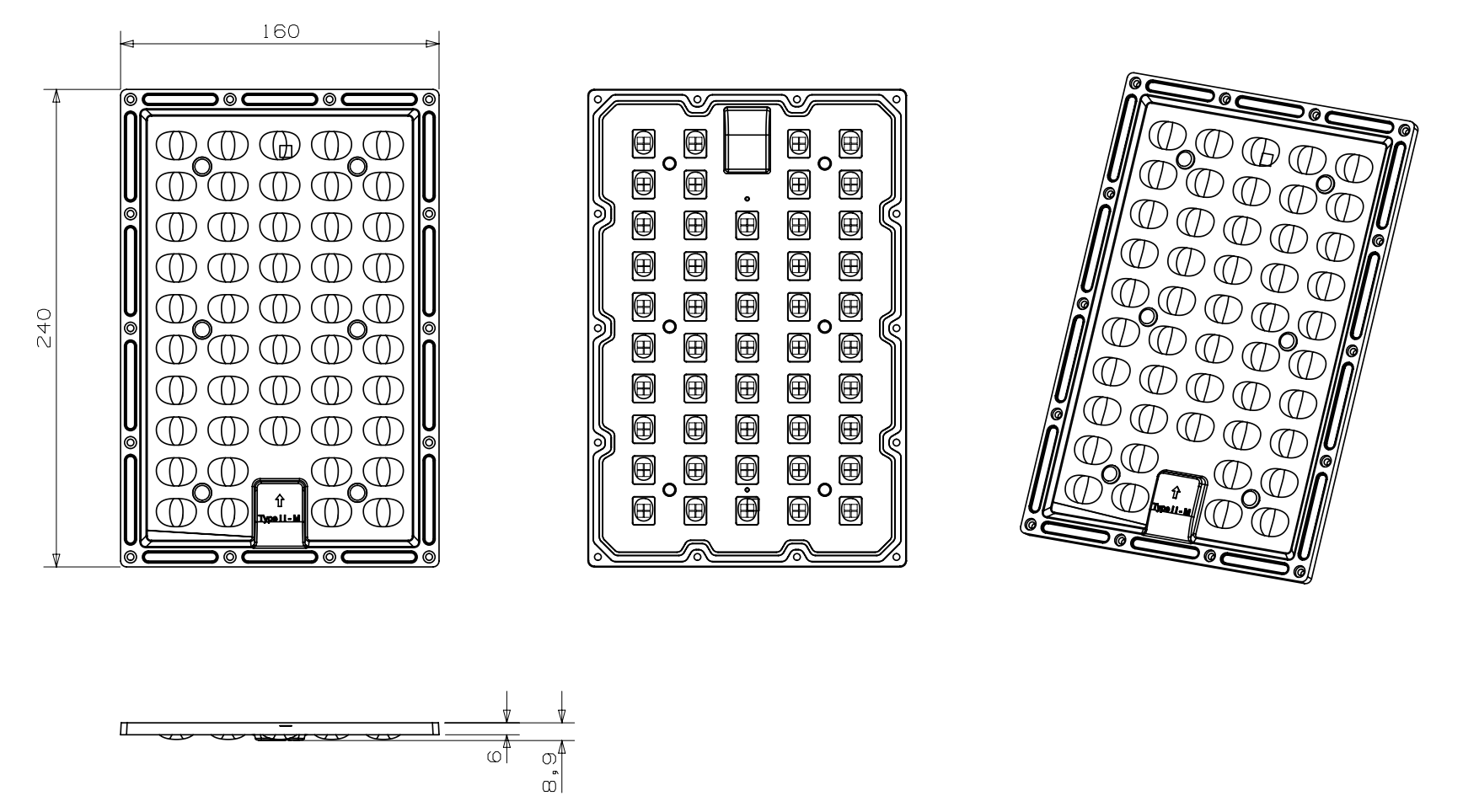

LENS Dimensions :
 192PCS SMD3030 1W 6V LED Lens Module TYPE2-M 48 Points Lens 150LM/W

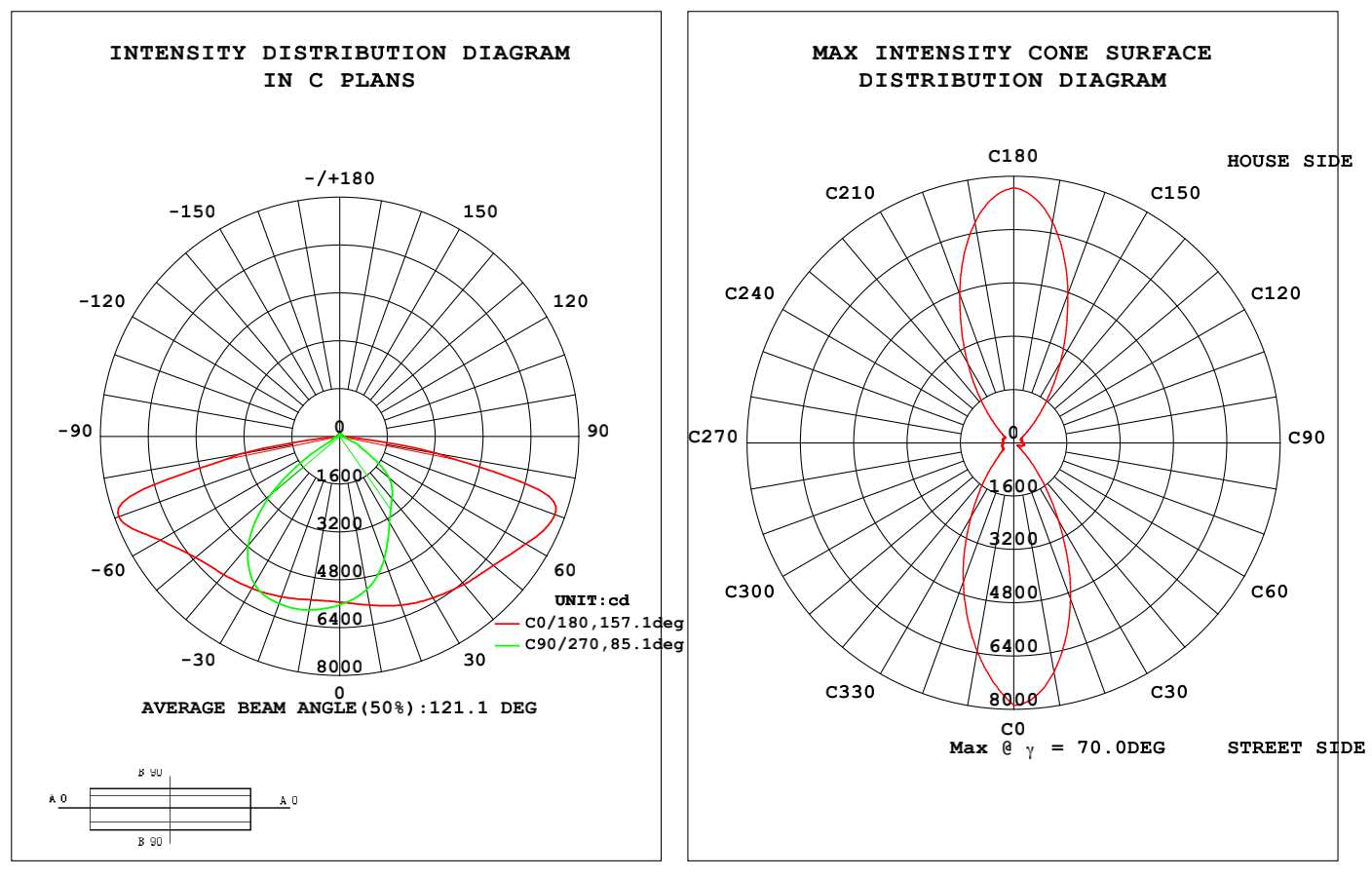

Beam pattern:

TYPE2-M:
192PCS SMD3030 1W 6V LED Lens Module TYPE2-M 48 Points Lens 150LM/W




Any request or question , please freely contact me by :

Yuan Hu

EMAIL :marketing@sunshineopto.com
Skype : yuanhelen56
Whatsapp:+86-18665803783

Mobile: +86-18665803783
QQ:1831466204
Wechat:Helen1404
