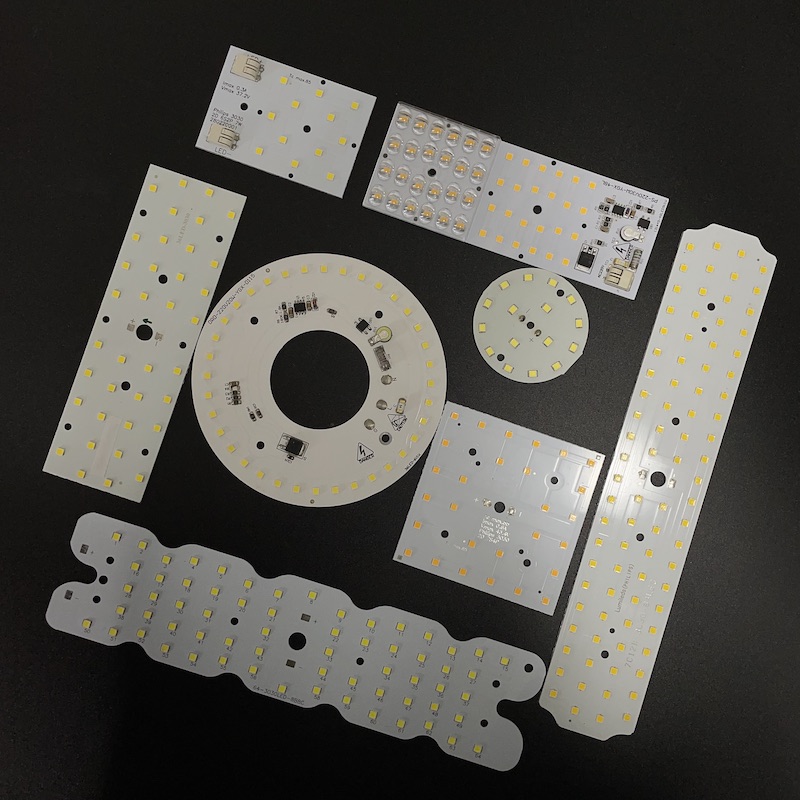

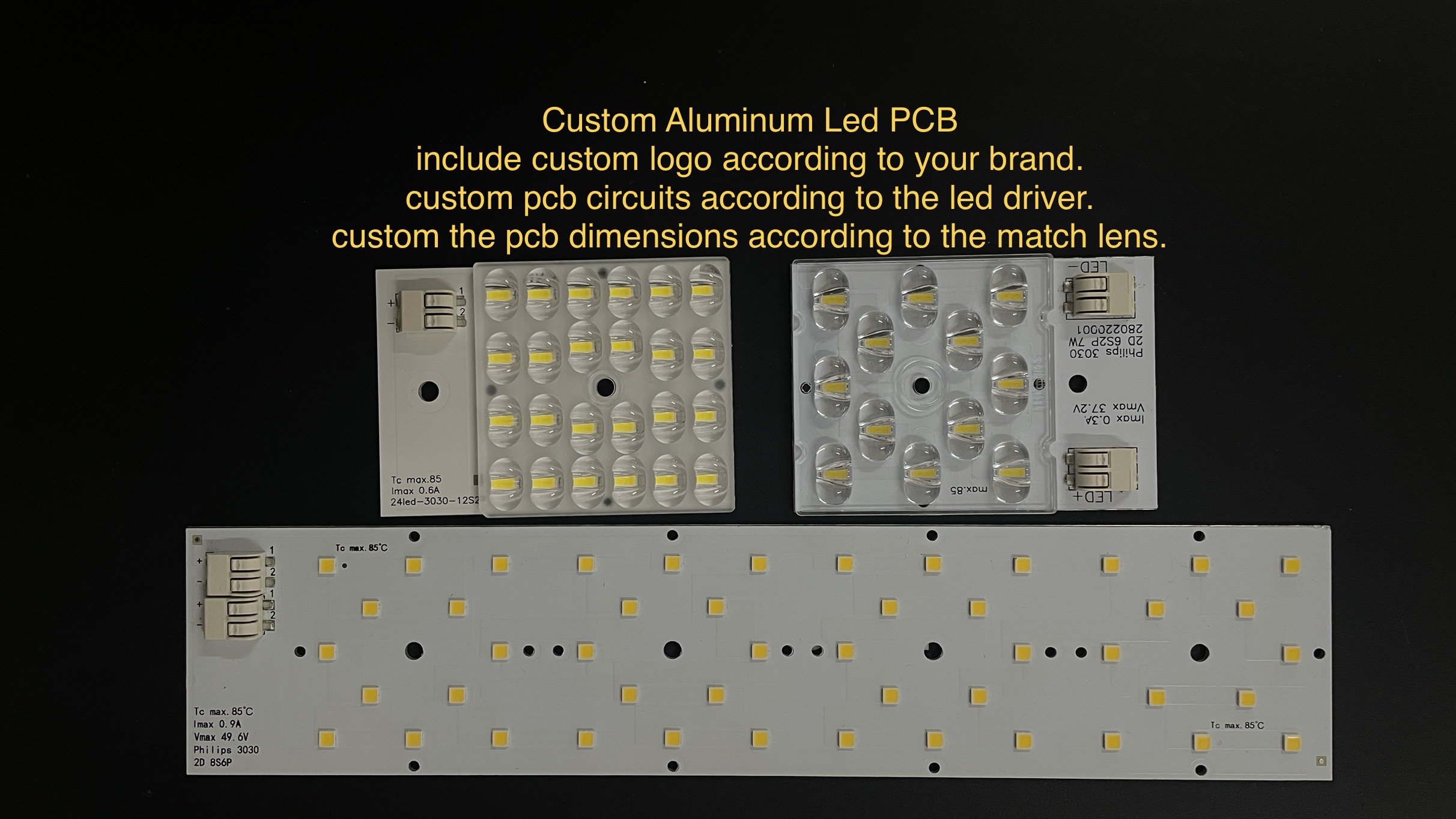

10W 20W 30W 50W 60W 80W 100W 120W 150W 200W 300W 3030 / 5050 / 3535 SMD LED board Customized module
Quick Detail:
PCB Board:
PCB SIZE:216x245x1.5mm Layer:1
Board thickness:1.5mm
Solder mask: white
Thermal Conductivity:1w/m.k
Test way:100% test
LED CHIP: 3030 SMD LED 6V
Material: Aluminium
Dense array of 144 led lens/Small footprint, high light output

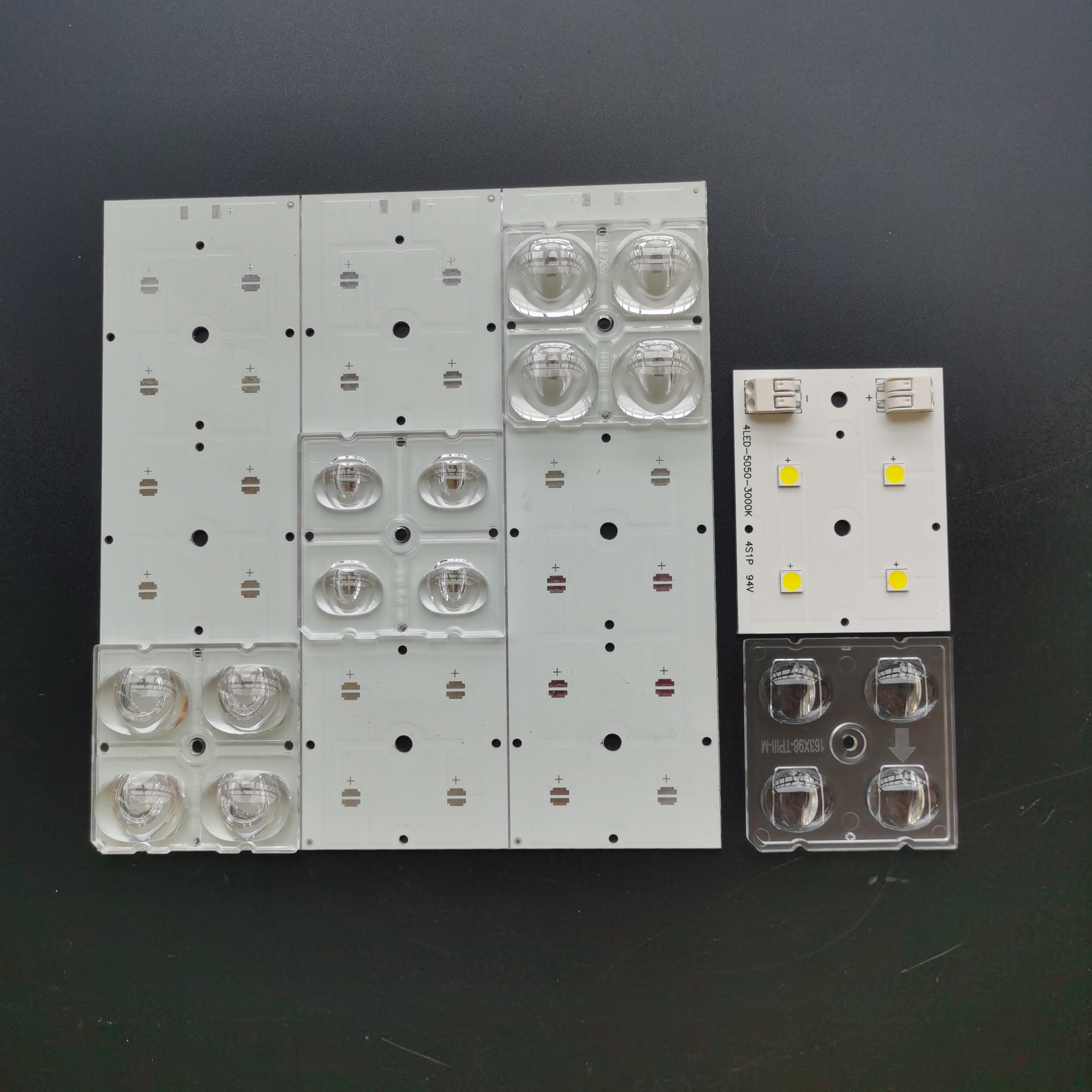

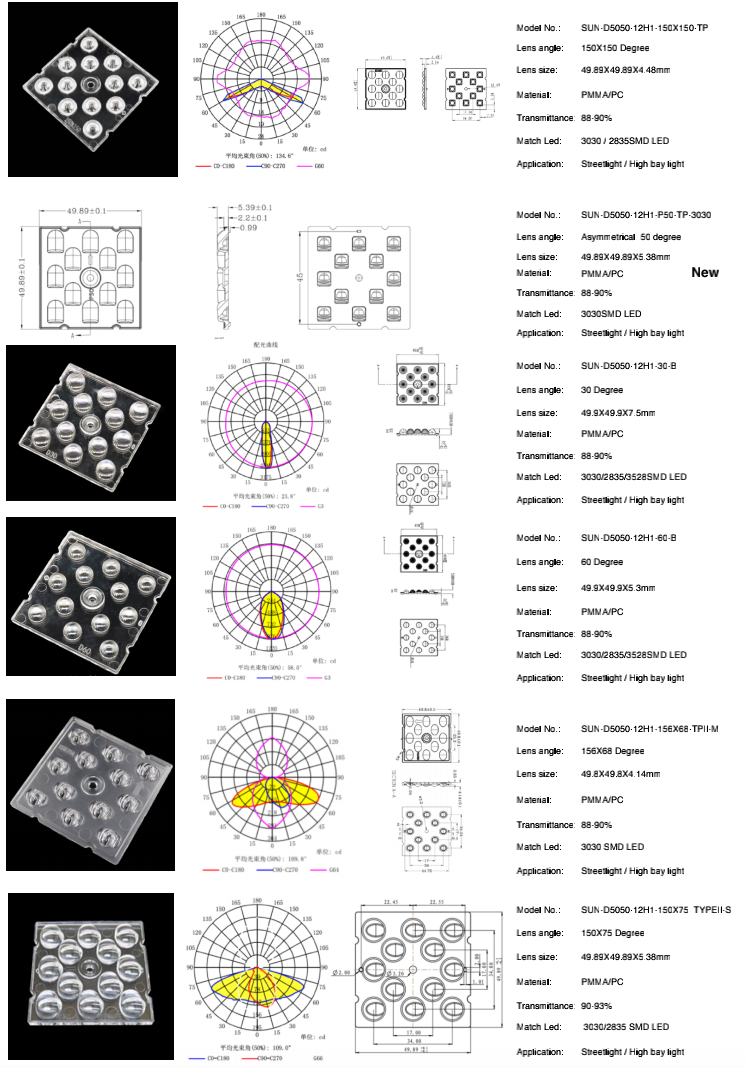

LED LENS Details:
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
| 1, Product Name | 10W 20W 30W 50W 60W 80W 100W 120W 150W 200W 300W 3030 / 5050 / 3535 SMD LED board Customized module |
| 2, Model No | customized board |
| 3, Main parts | PCB board with led + lens |
| 4, Lens Material | PC |
| 5, Lens size | 50X50MM |
| 6, Transmittance | 91% |
| 7,LEDS | 3030SMD LED |
| 8, Sample | 5-7 work day |
| 9, Delivery | 7-10 work days for 10000 sets |
| 10, Angle | 15/30/60/90/60X60/90X90/143X50/156X68/150X75 degree |
| 11, Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| 12, Main market | Europe, South America,North America, Asia |
Shipping and delivery time:
| DHL/UPS/TNT/FEDEX | 4-5 working days |
| EMS | 10-15 working days |
| HK Post Air Mail Register | 15-18 working days |
| Trade Terms | FOB|EXW|CIF|CFR |
| Sample availability | YES |
| Delivery time | 3-4 working days |

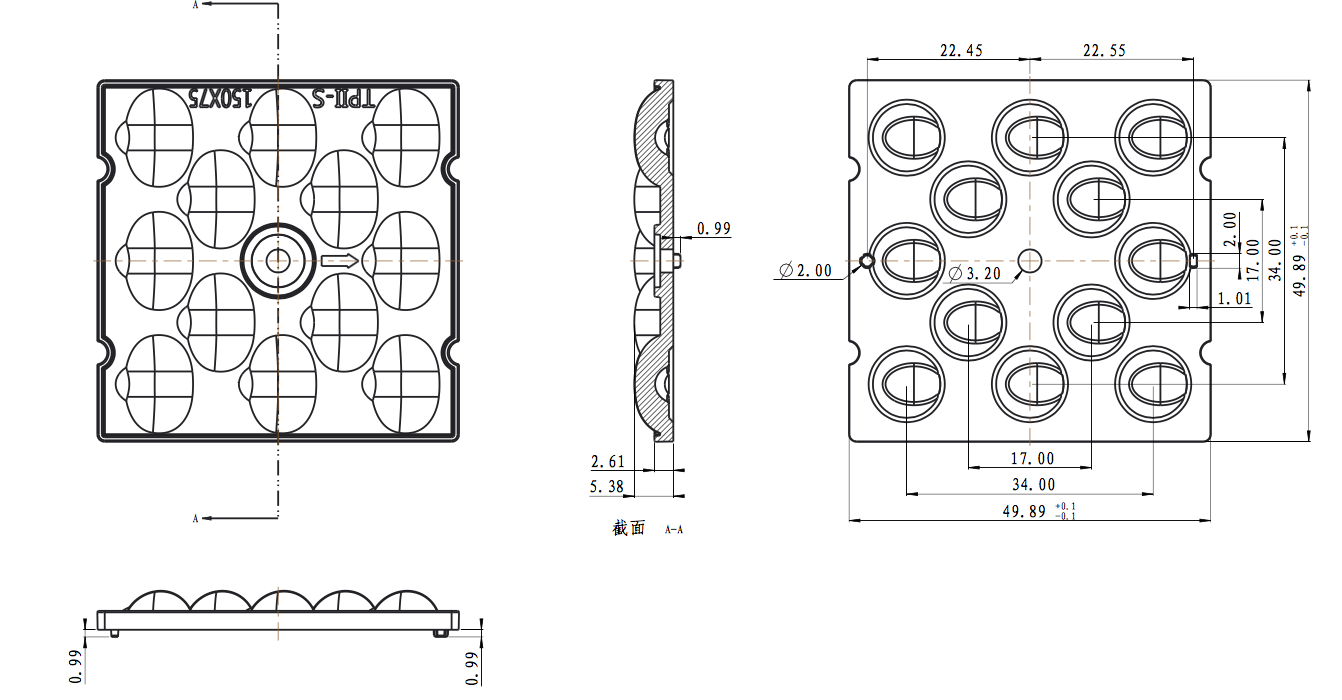

LENS Dimensions :

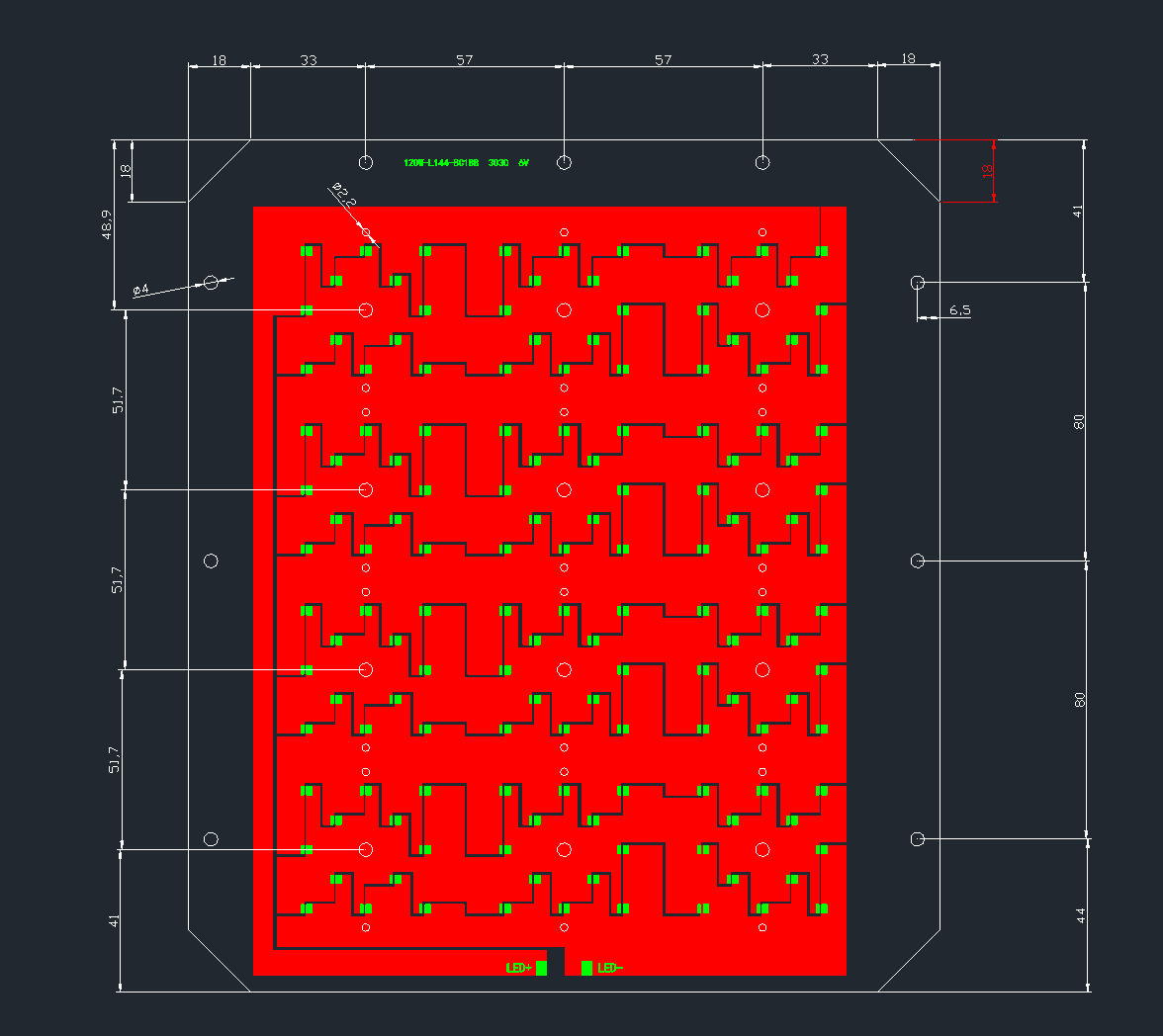

PCB SIZE:
Related for LED module:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
