Wide Beam Angle 130 Degree High Bay Light Module 80W with Optical Injection Lens
Product Feature:
1. This led street light module has a small size can match a variety of lamp housing .
2. Whole led light module use PH5050 leds ,High quality leds guarantee long life .
3. We have a competitive price for PH5050 leds .
4. We can according your requirements to desion new Lens and Board.
5. This SKD 28 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 100W,110W and so on .
6. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
7. Optic lenses are available for projects that need smaller beam angles, like 80X150/ 30/60/90/90X120/degree/TYPE3 and TYPE4.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
| 1, Product Name | Wide Beam Angle 130 Degree High Bay Light Module 80W with Optical Injection Lens |
| 2, Model No | SUN-SL270X75-5050-130 |
| 3, Main parts | 28 Array lens , silicon gasket+PCB+ 5050SMD LED |
| 4, Lens Material | PC |
| 5, Lens size | 270X75MM |
| 6, Transmittance | 91% |
| 7,LEDS | 5050 SMD,24V, 160mA |
| 8, Sample | 3-4 work day |
| 9, Delivery | 5-7 work days for 10000 sets |
| 10, Angle | TYPE5 130 Degree |
| 11, Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| 12, Main market | Europe, South America,North America, Asia |
Related products:
| Model No. | Power(W) | Angle( degree) | Lens size(mm) | PCB size(mm) | Circuit |
SUN-LD236x70-5050-30/60/90 | 50-100W | 30/60/90 | 236X70 | | 2S14P |
| | 50-100W | 90X120 | 236X70 | | 2S14P |
| | 50-100W | 80X150 | 236X70 | | 2S14P |
SUN-LD270x75-5050-TYPE3-M | 50-100W | TYPE3 | 270X75 | | 2S14P |
SUN-LD270X75-5050-TYPE4-S | 50-100W | TYPE4 | 270X75 | 250x56x1.5 | 2S14P |
| | 50-100W | 90 | 270X75 | 250x56x1.5 | 2S14P |
| | 6-20W | 60/90 | | | |
| | 6-20W | TYPE3 | | | |

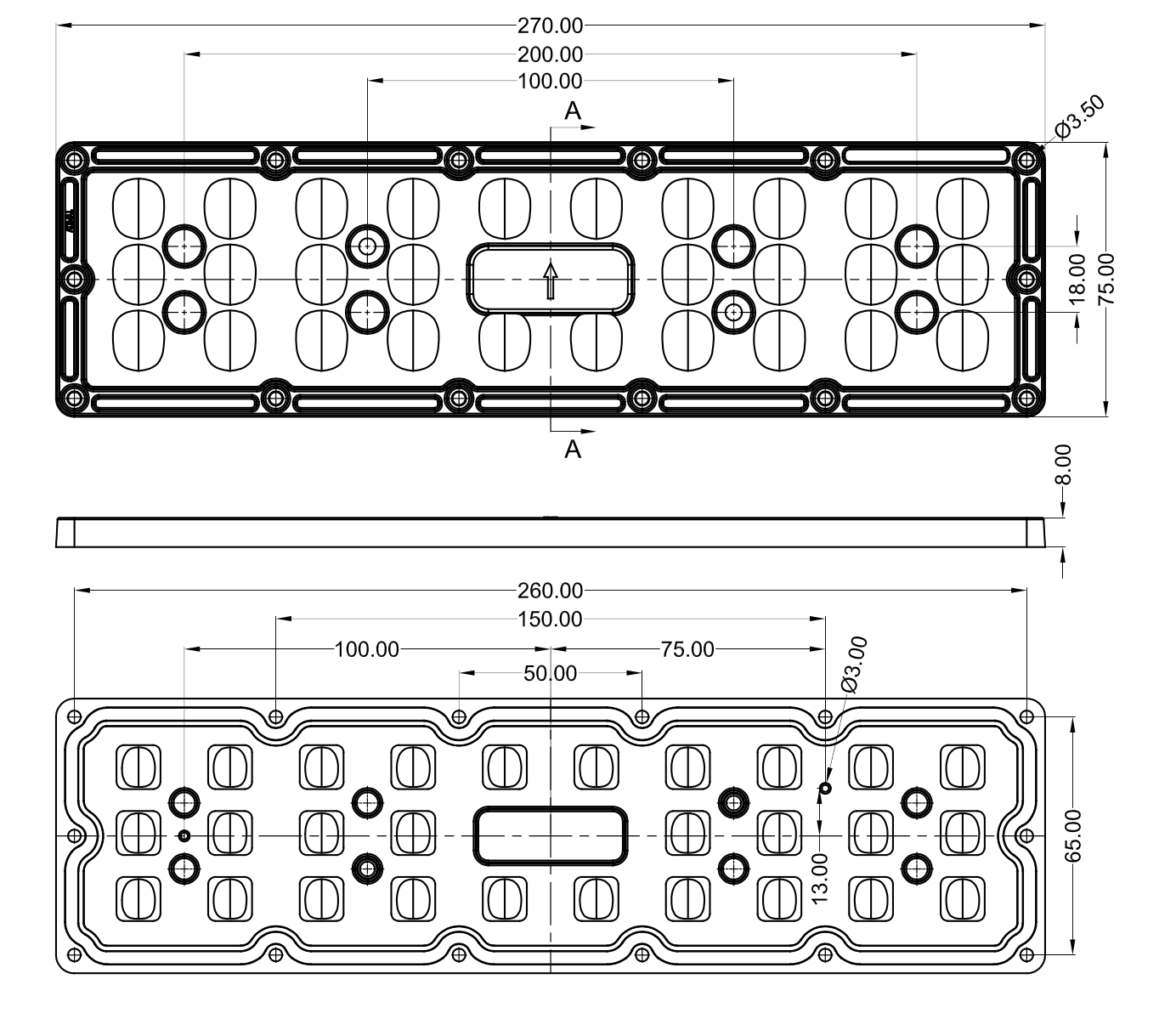

LENS Dimensions :

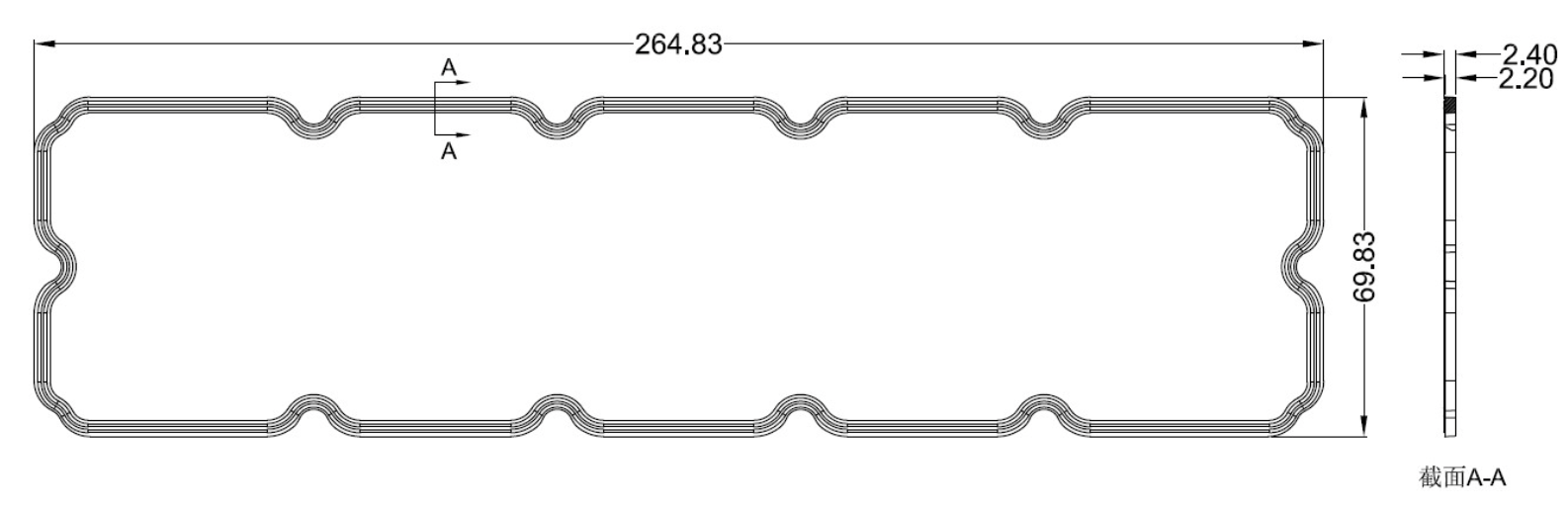

Dimensions for silicon gasket:

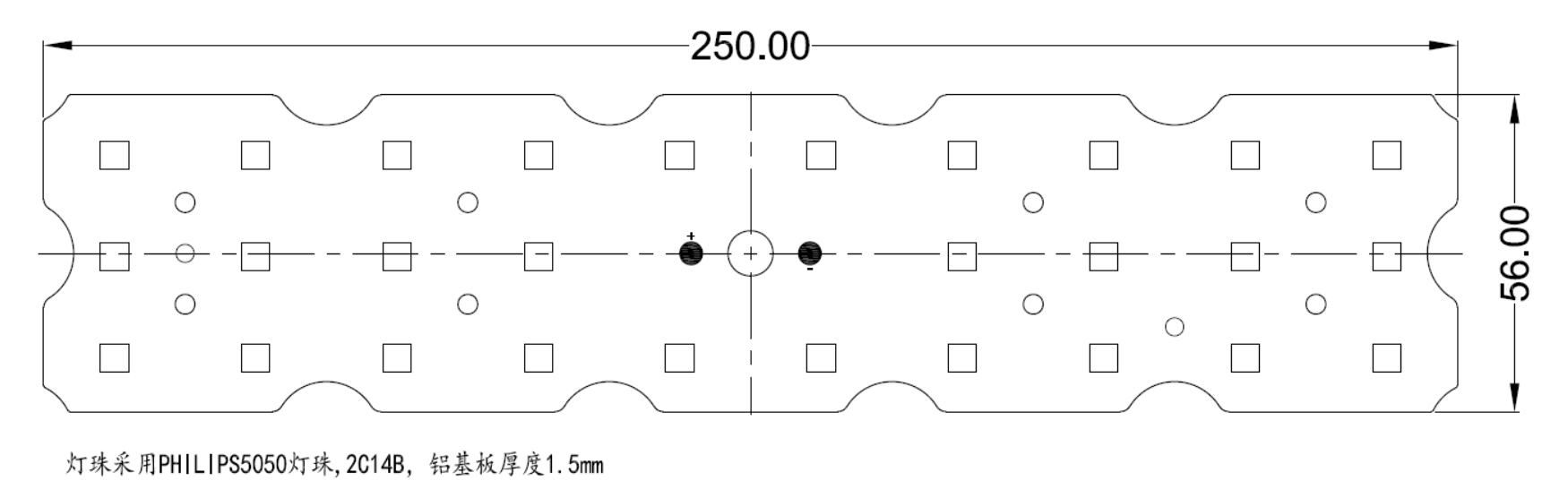

PCB board size:
