72 LED Points Led Light Engine Module SMD Urban Trunk Roads Lighting SKD Energy Saving

Name: 72 LED Points Led Light Engine Module SMD Urban Trunk Roads Lighting SKD Energy Saving
Brand: Sunshineopto
Price: 1 USD

Buy cheap 72 LED Points Led Light Engine Module SMD Urban Trunk Roads Lighting SKD Energy Saving product

Brand Name : Sunshineopto

Model Number : SUN-SL72-3030-90

Certification : SGS,ROHS

Place of Origin : Shenzhen,China

MOQ : 1

Payment Terms : T/T,PAYPAL,Western Union,Money Gram

Supply Ability : 5000pcs/months

Delivery Time : 3-4 working days

Packaging Details : Cartons

Product name : 72 LED points 30w 40w 50w 60w SMD Urban trunk roads Lighting SKD in China

Model No. : SUN-SL72-3030-90

Beam angle : 90 degree

LENS size : 250x74x6.15mm

Material : Optical grade PC

LED CHIP : 3030 SMD LED, 140-150lm/w@ 150mA,6v

Tranmittance : 91%

Application : High bay light/Street light

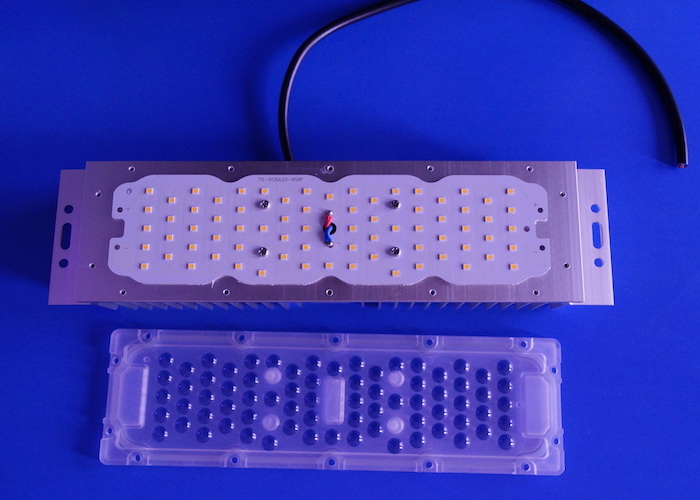

kit : gasket and lens+PCB+ 3030SMD LED+Heat sink

PCB size : 226x57.9x1.5mm

Circuit : 8 series 9 parallel

Heat sink size : 300x70x40mm

Contact Now

72 LED points 30w 40w 50w 60w SMD Urban trunk roads Lighting SKD in China

72 LED Points Led Light Engine Module SMD Urban Trunk Roads Lighting SKD Energy Saving

We can according your require to open new the Circuit for different solution.

Main Application : highway lighting, urban trunk roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and
other places of street lighting .

Product Feature :

1) High energy-saving: module luminous efficiency 120-180lm/W, exceeding 50% of ordinary LED street light
2) Environmental protection: No harmful substances that affect the environment such as lead and mercury, and no radiation harmful to human health such as ultraviolet rays and infrared rays, no adverse glare to ordinary street lamps, and no light pollution to the surrounding environment.
3) Long service life: The server life is 5-8 times that of traditional lamps of the same type, saving maintenance costs.
4) Efficient and stable: no start-up delay, constant current drive, no influence from grid fluctuations, no flicker.
5) Easy to install and disassemble: just fix the lamp body on the lamp body at the installation position, and remove the module by loosening the screws during maintenance.
6) High safety: The external voltage of the module is a safe voltage, which effectively prevents the risk of electric shock leakage.
7) High-performance light distribution scheme: The use of ultra-high-order free-form surfaces for uniform brightness streetlight lenses further enhances brightness and illuminance uniformity and geometric utilization under the premise of meeting the light distribution requirements of road lighting design standards.
8) The module can be plug-in and plug-in design, easy maintenance, assembly, spare parts, and convenient stocking.

Specifications:

1, Product Name	High efficiency highway lighting module 50w 135lm/w 3030SMD 2D LED 60 Degree
2, Model No	SUN-SL72-3030-60
3, Main parts	Array lens , silicon gasket+PCB+LED+HEAT SINK
4, Lens Material	PC
5, Lens size	250X74MM
6, Transmittance	91%
7,LEDS	3030 SMD LED, 140-150lm@ 150mA,6v
8, Sample	3-4 work day
9, Delivery	5-7 work days for 10000 sets
10, Angle	60 degree
11, Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
12, Main market	Europe, South America,North America, Asia

Shipping and delivery time:

DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB\|EXW\|CIF\|CFR
Sample availability	YES
Delivery time	3-4 working days

Light distribution:

72 LED Points Led Light Engine Module SMD Urban Trunk Roads Lighting SKD Energy Saving

LENS Dimensions :

Gasket size:

PCB size:

Any request or question , please freely contact me by :

Yuan Hu

EMAIL :marketing@sunshineopto.com
Skype : yuanhelen56
Whatsapp:+86-18665803783

Mobile: +86-18665803783
QQ:1831466204
Wechat:Helen1404
