Linear Street Light Led Retrofit Modular Low Bay Luminaire 100W/150W/200W 3030 Led

Name: Linear Street Light Led Retrofit Modular Low Bay Luminaire 100W150W200W 3030 Led
Brand: SunshineOpto
Price: 1 USD

Buy cheap Linear Street Light Led Retrofit Modular Low Bay Luminaire 100W/150W/200W 3030 Led product

Brand Name : SunshineOpto

Model Number : SUN-L64W-130

Certification : SGS/ROHS

Place of Origin : Shenzhen,China

MOQ : 20

Price : need to negotiation

Payment Terms : T/T, Western Union, MoneyGram,PayPal

Supply Ability : 5000 sets per Month

Delivery Time : 5-8 working days

Packaging Details : 20 sets/Carton .

Product Kits : Led lens with silicon gasket ,pcb welding 3030 leds

Lens Size : 236*70mm

Lens Angle : 130 degree

PCB Size : 217.7x43.5x1.5mm

PCB Circuit : 8 series 8 parallel

Match Leds : 3030 led

Contact Now

50W Linear Led Light Module For Modular Low-bay Luminaire 100W/150W/200W

1, The module uses high-quality 3030 leds and we provide 2 years warranty .

2, The whole module can support 40watt-50watt ,The luminous efficiency can reach 130-140lm/watt ,

3, The size of this module is 236*70mm ,It's more common and can be used to replace old products .

4, 130 degree large angle .
Quick Details :

Model No.:	SUN-L64W-130
Angle:	130 degree
Lens Size:	236x70mm
PCB Size:	217.7x43.5x1.5mm
Lens Material:	Optical grade PC
Circuit:	8 series 8 parallel
LED:	64 pcs 3030 SMD LED

Technical Parameters :

Model No.		SUN-L64W-130
Power(W)		40	50
Voltage(Vf/V)		47.65	48.72
Current(If/mA)		898.2	1098.1
Color Temp Tc(K)		4000	4000
Efficiency (lm/W)	Without lens	160.78	153.79
	with lens	143.27	135.78
Luminous Flux (φv/lm)	without lens	6881	8228
	with lens	6125	7322
Color Index(Ra)		＞70	＞70
Lens beam angle		130 degree
Wick		64 pcs 3030 leds
Protection level		IP66
Working temperature(℃)		-30-50
storage temperature(℃)		-30-65
Server Life(H)		50000

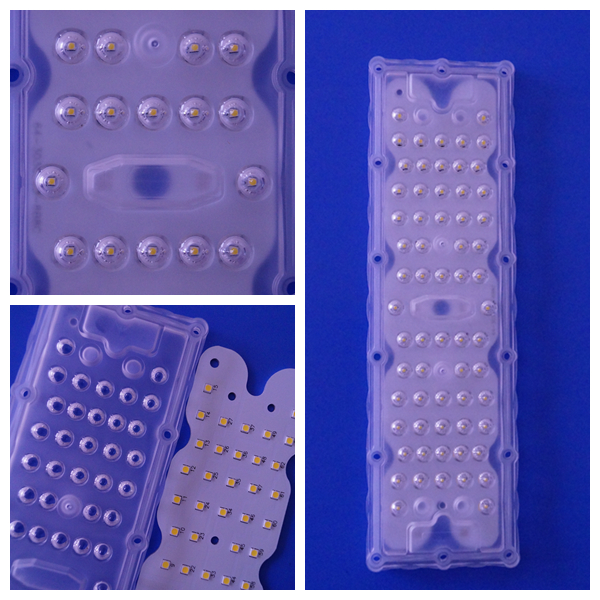

Product Picture :
Linear Street Light Led Retrofit Modular Low Bay Luminaire 100W/150W/200W 3030 Led

We provide led street light parts, you need to assemble it yourself, if you need us to provide assembly, we need to charge the assembly fee .

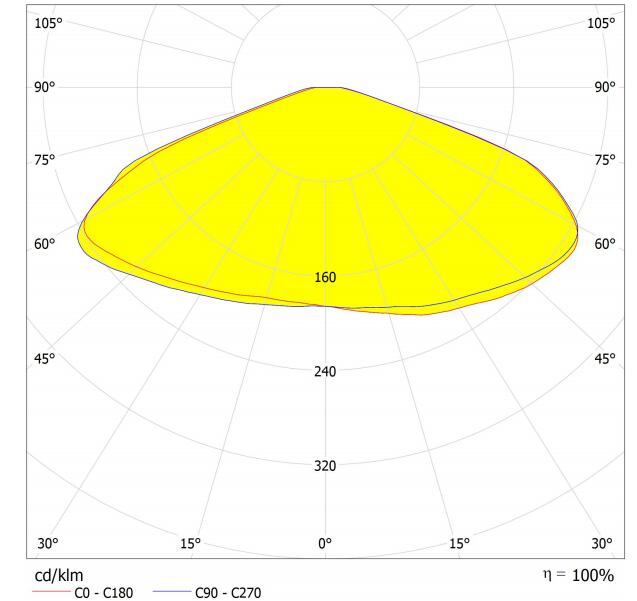

Light Distribution :

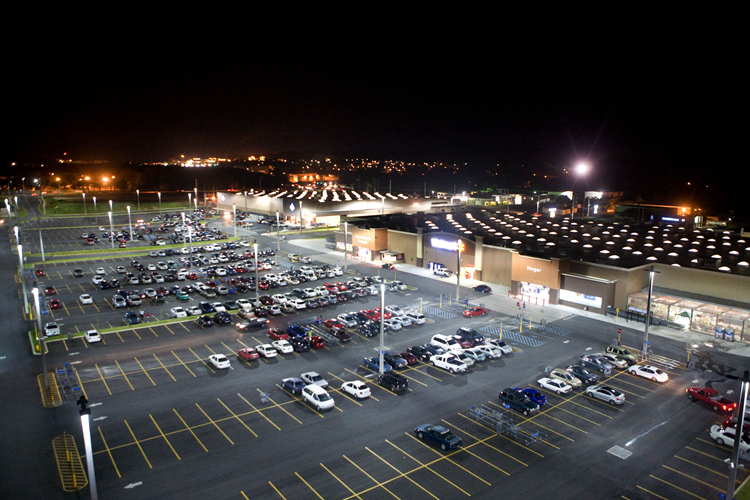

Application :
Parking lot light ,Highway lamp ,street light ,etc .
Linear Street Light Led Retrofit Modular Low Bay Luminaire 100W/150W/200W 3030 Led

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
