20mm Diameter Led Optics Lenses 5 Degree PMMA 1w 3w High Power 93% Transmittance

Name: 20mm Diameter Led Optics Lenses 5 Degree PMMA 1w 3w High Power 93 Transmittance
Brand: Sunshineopto
Price: 1 USD

Buy cheap 20mm Diameter Led Optics Lenses 5 Degree PMMA 1w 3w High Power 93% Transmittance product

Brand Name : Sunshineopto

Model Number : HH-20-5-KKLP

Certification : ROHS

Place of Origin : Shenzhen,China

MOQ : 1000 pcs

Price : Need to negotiate

Payment Terms : T/T,PAYPAL,Western Union,Money Gram

Supply Ability : 10000pcs/day

Delivery Time : 3-4 working days for 1000pcs

Packaging Details : 2000pcs/ctn 8kgs/ctn

Product name : 20mm Diameter 5 degree PMMA Optical lens 1w 3w High power LED Lens

Model No. : HH-20-5-KKLP

Beam angle : 5 degree

Material : PMMA

Dimensions : 20mmX13mm

Lens : 93%

Working Temperature : -35°C~ +90°C

Matching for LED : Bridgelux chip / Edison led

Surface : Clear surface

Contact Now

20mm Diameter 5 degree PMMA Optical lens 1w 3w High power LED Lens

5. without holder

Specifications:

Model No	HH-20-5-KKLP
Power	1W, 3W
Lens size	20mm dia. 13mm heigh
Led chips	Bridgelux / Epistar / Edison led
Temp	-35 to + 90 degree
Standards	ROHS
Transmittance	93%
Application	Spotlight,Wall-washer light,Ceiling light
Beam Angle	5 degree Only

without holder!

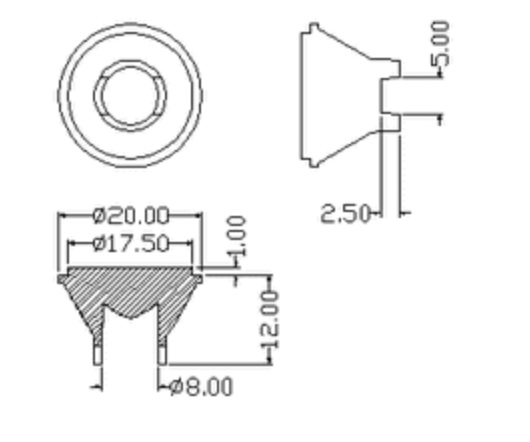

Drawings of Lens :

20mm Diameter Led Optics Lenses 5 Degree PMMA 1w 3w High Power 93% Transmittance

Package :

20mm Diameter Led Optics Lenses 5 Degree PMMA 1w 3w High Power 93% Transmittance

Description:

The material of Led Optical Lens is made of high grade PMMA , the transmittance rate is above 93%.

We can open new lens according your design and 2D drawing.

Applications :

It can be applied for more led lights like Wall-washer light,Ceiling light ,Spot Light,torch light ,led down lights and so on .

Competitive Advantage :

1, One-Stop Service of led components and 6years specializing in High Power LED industry

2, Complete supplying system with full range of Products,from high power leds ,led optical lens, led constant drivers ,MCPCB modules and many led light components

3, Strict process and quality control

4, Good raw materials used in production

5, Strong design and production capability
